Quick answer: The Customizable cleaning systems cover both bespoke sole cleaning equipment and a fully automatic 5-gallon barrel washing line — stainless steel construction (3 mm plate for the 600bph model), with SIEMENS/OMRON electrical and AIRTAC pneumatic components, built to your site conditions.

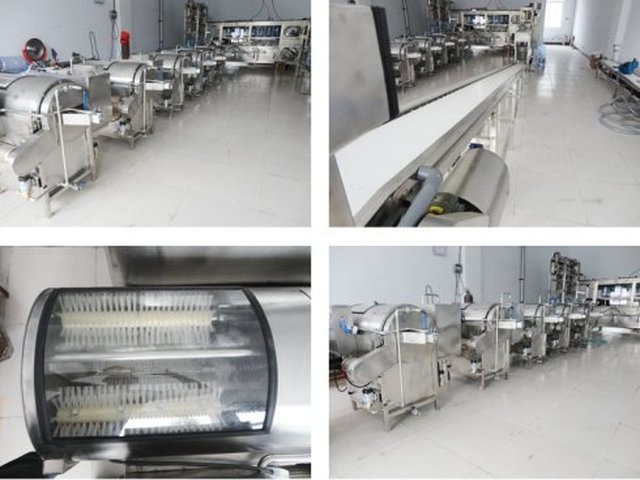

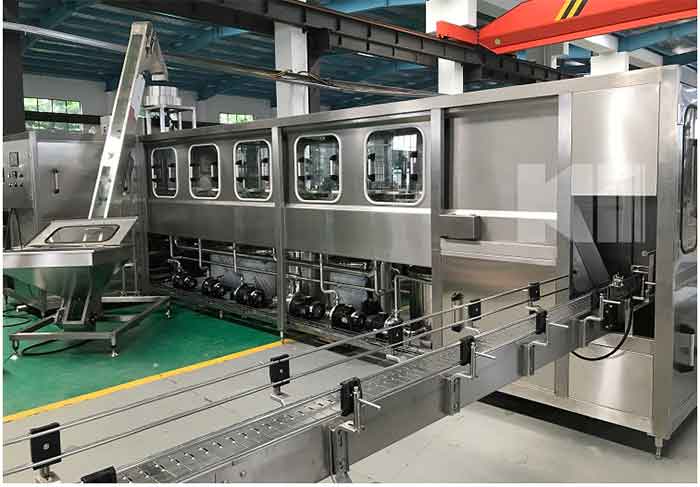

5 Gallon barrel cleaning line
The ideal equipment for mineral water, distilled water and purified water producing process. Made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. Main electrical parts adopt products with brand of SIEMENS and OMRON. Pneumatic parts adopt products with brand of AIRTAC. Both the inner and outer shower nozzle for washing barrel adopt the special technology equipment from American sprayer company. The machine works reliably and efficiently based on the compact structure and high automatic technology. It is the fully automatic barreled water producing equipment combined with machine, electronic and pneumatic components.

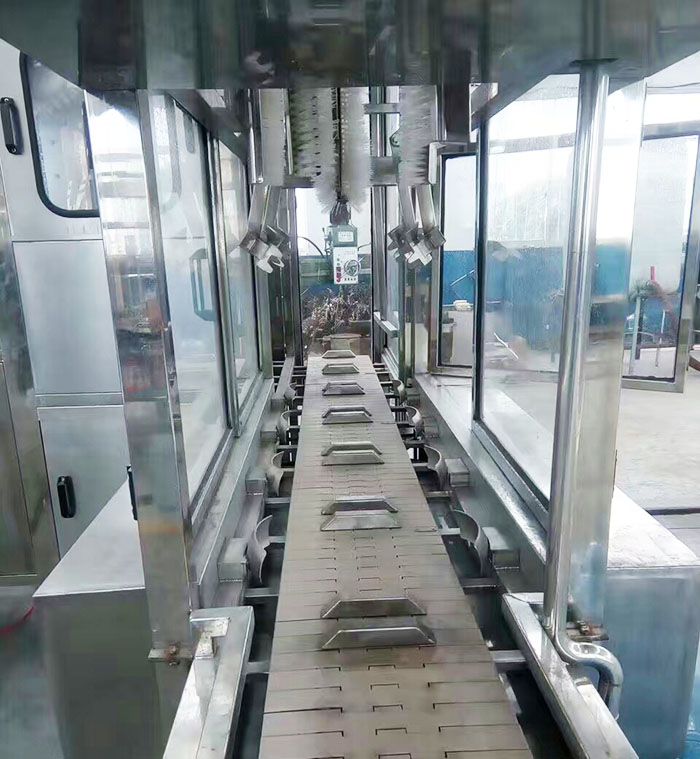

Outside washing machine
Automatic barrel outer brushing machine specially works with 5 Gallon barreled water producing line. It is used for reducing the settling caused by the mineral water itself and some algae substances in the process of mineral water producing. The machine is made of excellent stainless steel with the advantage of easily-rinsing and corruption-resistance. The main electrical elements adopt the products with brands of SIEMENS and OMRON. Pneumatic elements adopt the products with brand of AIRTAC.
Main machine features
- Shape structure adopted concave and convex shape, perfect appearance also reduces the leakage
- The thickness of the stainless steel plate which used for 600bph is 3 mm
- Tank and the heating pipe in tank are removable which become more clean sanitation
Filling part features
- Uploading and dropping barrels changed from 45 degree to translatory which is more stable
- Nozzle can insert into 10–15 cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid
Capping parts
- Liquid level difference is controlled in 1 cm
- Machine is equipped with Cap Sterilization system, which is 1.2 m. The system make products more clean and safe by using sterilization and finished water
- Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component
Flat conveyor
The chain board on conveyor is made with stainless steel. The appearance of foot stand is perfect, and the height can be adjusted.
Cap sterilization system
Machine is equipped with Cap Sterilization system, which is 1.2 m. The system make products more clean and safe by using sterilization and finished water.

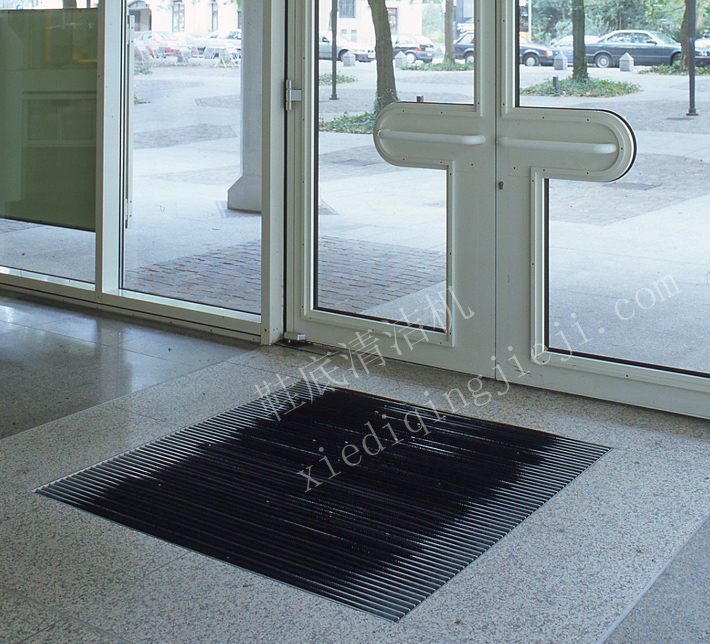

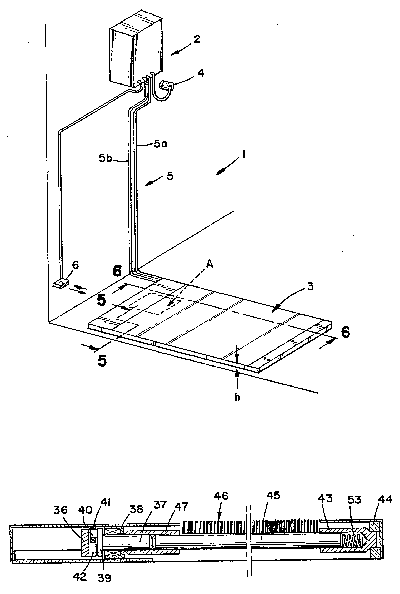

Custom sole cleaning equipment
Custom Edition — we can according to customer needs, customize sole cleaning equipment suitable for the special requirements of customers and site condition.
Compare with other models
Need a wet mat for cart wheels and people? See the Wheel cleaning mat device (customizable size, steel plate with nylon filament brush). For a standard long walk-through corridor, compare the Corridor Shoes sole cleaner (six lengths from 1160 to 3120 mm). For industrial boot washing, see the Automatic boots sole bottom & sides cleaner (height 10–40 cm). Browse every model on the Products page.
